SKU: MDF-86C-Parent

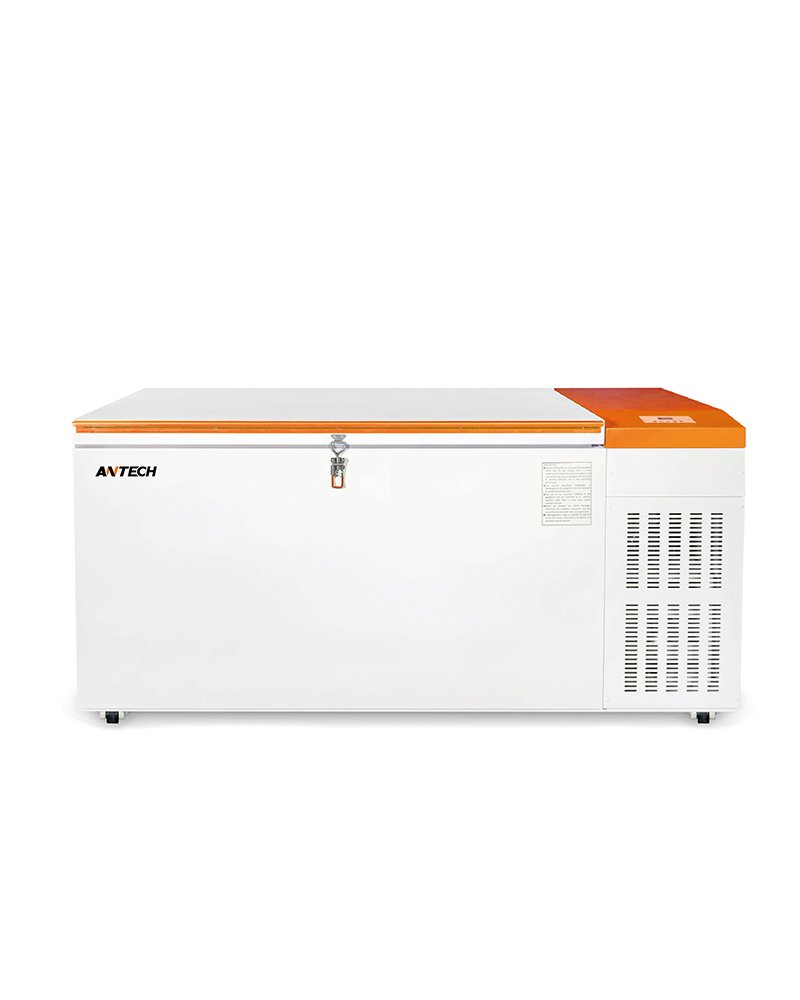

-86°C ULT Chest Freezer
| Sale Units | Pieces per ea |
|---|---|
| ea | 1 |
In Stock
Categories: Ultra-Low FreezersSKU: MDF-86C-Parent
Product Enquiry
TC-300 Touchscreen Control System – Smart Monitoring for Ultra-Low Freezers
The TC-300 control system is a user-friendly, intelligent interface designed to make operating and monitoring ultra-low temperature (ULT) freezers more efficient, secure, and convenient.
Key Features
7″ LCD Touchscreen Display
- Responsive and easy to navigate interface
- Real-time display of internal temperature with large digits for visibility at a distance
- Visual status icons indicate system health (normal or alarm condition) at a glance
- Integrated temperature curve display for quick trend analysis
- Password protection prevents unauthorised changes to settings
- Built-in data logging and USB port for exporting temperature and event history
Performance & Efficiency
- Advanced cooling system using hydrocarbon refrigerants for faster pull-down and energy efficiency
- Equipped with SECOP compressors and EBM blowers for reliable, low-noise operation
- VIP (Vacuum Insulation Panels) combined with high-density polyurethane ensure stable temperature and reduced thermal loss
Ergonomic & Functional Design
- Easy-to-use 7” touchscreen positioned for optimal accessibility
- Internal insulated doors with seals reduce frost buildup and improve insulation
- Adjustable stainless-steel shelves for flexible storage of various product sizes
- Manual pressure release port allows easy door opening without strain
- Ultra-quiet operation ideal for lab environments
- Optional sliding drawer racks and side-access racks available for 2 mL/5 mL vials or SBS-format boxes
Environmentally Friendly
- Natural refrigerants compliant with EPA and SNAP regulations (non-ozone depleting)
- CFC-free polyurethane foam insulation
- Energy-efficient system design lowers power consumption and reduces carbon emissions
Integrated Alarm System
- High and low temperature alarms
- High ambient temperature warning
- Door open alarm
- Power failure alert
- Sensor error and low battery notifications
Safety & Connectivity
- Onboard data storage with USB download
- Temperature curve for quick reviews
- Password protection to restrict critical setting changes
- Secure door lock to prevent unauthorised access
- Access port for secondary temperature probes
- Remote alarm contact outputs for external monitoring
- Optional CO₂ or LN₂ backup systems
- Optional online monitoring module (CryoMonitor 2000TF) for real-time remote access and alerts
| Model | MDF-86C118 | MDF-86C458 | MDF-86C728 | |
| Main specifications | Type | Chest | Chest | Chest |
| Cooling technology | Single compressor | Cascade cooling | Cascade cooling | |
| Temperature setting range (°C) | -40～-86 | -40～-86 | -40～-86 | |
| Climate type | N | N | N | |
| Capacity (L) | 130 | 495 | 746 | |
| 2″ box storage Qty (Pcs) | 96 | 360 | 585 | |
| Net weight (KGs) | 98 | 242 | 275 | |
| Intermal W×D×H (mm) | 630×440×470 | 1310x600x630 | 1310×740×770 | |
| Extermal W×D×H (mm) | 850×740×1023 | 1930x780x900 | 1930×997×1035 | |
| Door entrance limit (≥mm) | 740 | 780 | 997 | |
| Cooling type | Direct | Direct | Direct | |
| Defrost | Manual | Manual | Manual | |
| Refrigerant | Mixed gas | Hydrocarbon gas | Hydrocarbon gas | |
| Number of compressor | 1 | 2 | 2 | |
| Control & display system | Controller | TC-300 | TC-300 | TC-300 |
| Display | 7″ LCD touch screen | 7″ LCD touch screen | 7″ LCD touch screen | |
| Temperature display accuracy | 0.1 | 0.1 | 0.1 | |
| Password protection | Yes | Yes | Yes | |
| Power | Power supply (V/Hz) | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 | 220/50; 220/60; 120/60 |
| Rated power (W) | 480; 480; 540 | 900; 850; 780 | 980; 900; 820 | |
| Rated current (A) | 2.8; 2.8; 6.7 | 7.0; 5.0; 8.8 | 7.2; 5.8; 9.0 | |
| Data memory & monitoring | USB port | Yes | Yes | Yes |
| Cloud monitoring (Wi-Fi) | CryoMonitor 2000TF, optional | CryoMonitor 2000TF, optional | CryoMonitor 2000TF, optional | |
| Chart recorder | Optional | Optional | Optional | |
| Alarm functions | Visible/audible alarm | Yes | Yes | Yes |
| High/Low temperature | Yes | Yes | Yes | |
| Hot condenser | Yes | Yes | Yes | |
| Power failure | Yes | Yes | Yes | |
| Sensor failure | Yes | Yes | Yes | |
| High ambient temperature | Yes | Yes | Yes | |
| Door open | Yes | Yes | Yes | |
| Remote alarm contact | Yes | Yes | Yes | |
| Accessories | Inner door | N/A | 2 | 2 |
| Casters | Yes | Yes | Yes | |
| Test access port | Φ20mm x 1 | Φ20mm x 2 | Φ20mm x 2 | |
| Adjustable shelves | N/A | N/A | N/A | |
| Safety door lock | Yes | Yes | Yes | |
| Pressure equalization port | Manual | Auto x 1 & manual x 1 | Auto x 1 & manual x 1 | |
| Freezer rack | Optional | Optional | Optional | |
| Rack type (DxH) | 1×8 | 1×10 | 1×13 | |
| Rack Qty | 12 | 36 | 45 | |
| CO2/LN2 backup system | Optional | Optional | Optional | |
| Material | Exterior | Pre-coated steel | Pre-coated steel | Pre-coated steel |
| Interior | Stainless stell | Stainless steel | Stainless steel | |
| Insulation | Polyurethane | Polyurethane | Polyurethane | |
| Vacuum insulation panel (VIP) | Yes | Yes | Yes | |
| Cabinet insulation thickness (mm) | 90 | 90 | 90 | |
| Outer door thinkness (mm) | 90 | 90 | 90 | |
| Shipping | Gross weight (KGs) | 116 | 278 | 318 |
| Packing W×D×H (mm) | 930x780x1160 | 2010×880×1030 | 2010×1095×1165 | |
| Volume (m³) | 0.84 | 1.82 | 2.56 | |
