1000°C Digital Muffle Furnace
Available on Backorder
Categories: FurnacesSKU: FX-Parent
Product Enquiry

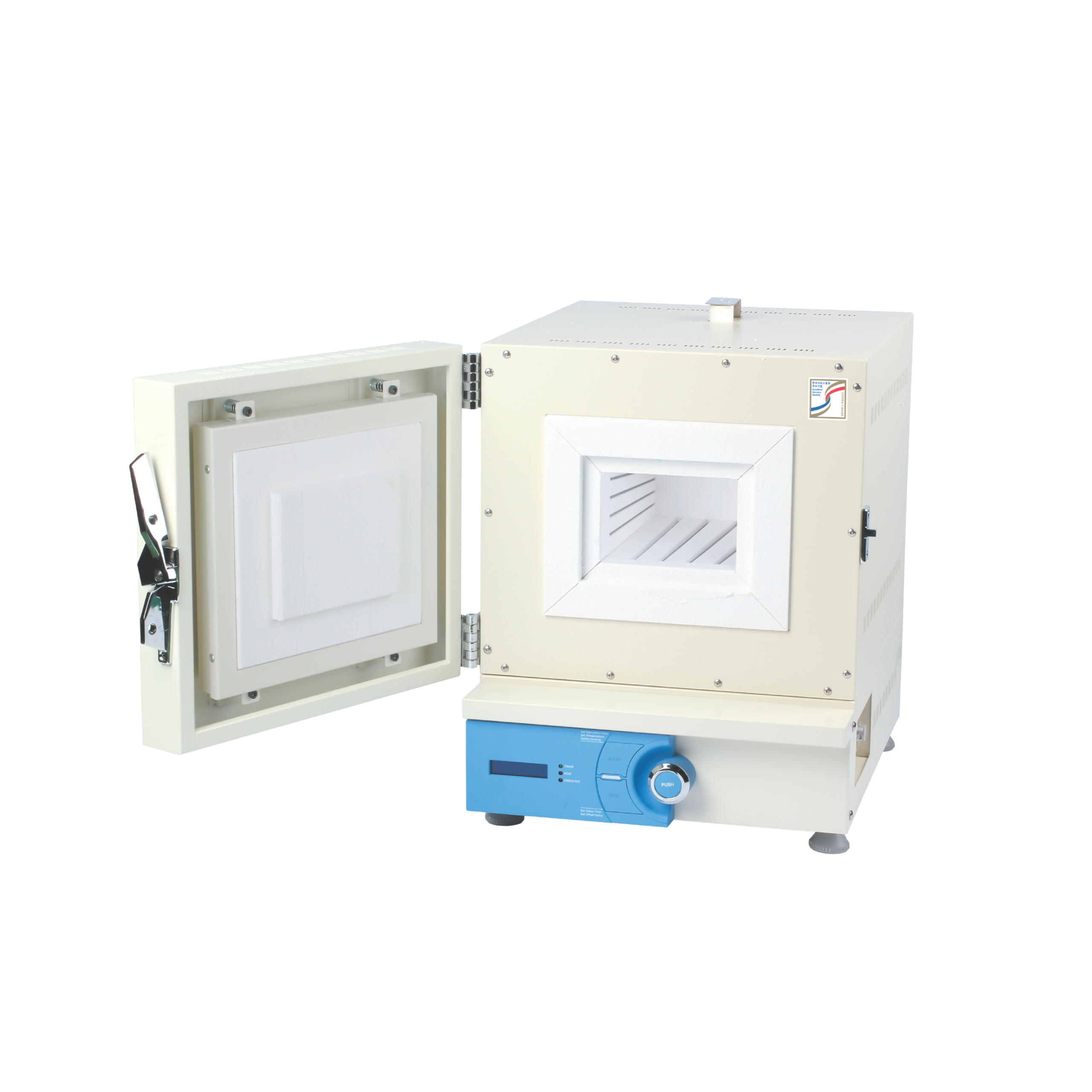

1000°C Programmable Digital Muffle Furnace
Key Features:

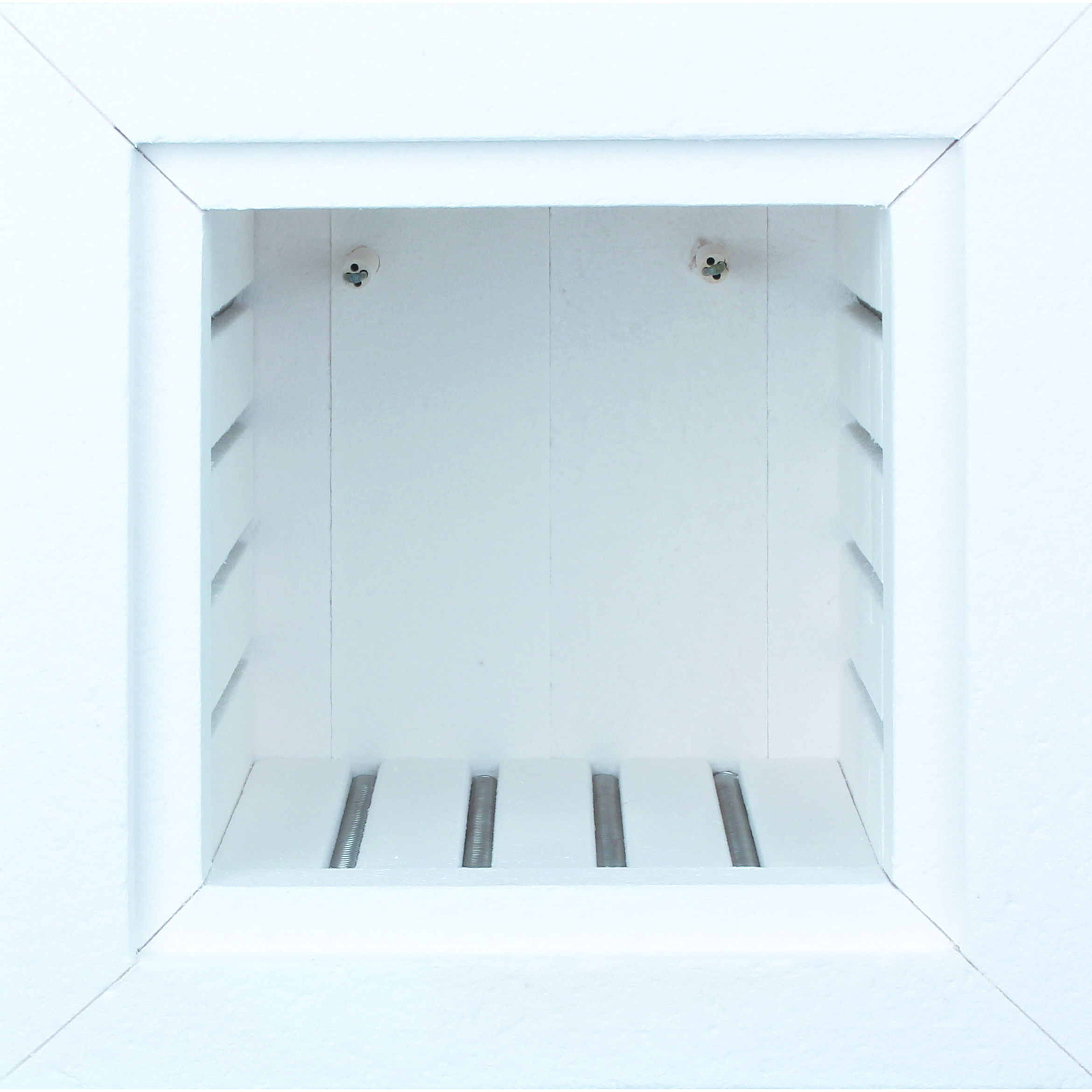

- Ceramic fiber exposed heating wire, 4-Side heating
- Digital PID Programmable Contoller: 4 Patterns with 10 Segments
- Short heat-up time
- Certifications:
- CE Certified
- PED Certified-model with Φ3.0mm Thick-Tank, Max.2 kgf/cm² pressure rating
- Each unit is controlled by Serial Number, includes Certificate, Delivery-information, and is part of a Traceable Data Base System.
- Comes with PL (Product Liability) Insurance.
| FX-03 | FX-05 | FX-12 | FX-14 | FX-27 | FX-63 | ||
| Temp. Range | 300°C – 1000°C | ||||||
| Capacity | 3 L | 4.5 L | 12 L | 14 L | 27 L | 63 L | |
| Heater | Kanthal A1, Expose Wire Heating Elements, 4-Side Heating | ||||||
| Thermocouple | K-Type Thermocouple | ||||||
| Heating Power | 1.6 kW | 1.7 kW | 3.3 kW | 4.0 kW | 4.6 kW | 9 kW | |
| Required Time to Reach 800 °C | 16 min | 20 min | 23 min | ||||
| Timer & Alarm | 99 hr 59 min, Error status & Timer-end | ||||||
| Display | Digital LCD with Back-Light Function | ||||||
| Controller | Digital PID Controller with Jog-Dial Switch (Turn + Push) | ||||||
| Program Function | 4 Patterns with 10 Segments | ||||||
| Safety Circuit | Over-Temp./-Current protection, Sensor Error Detection, Safety Switch for Door Opening | ||||||
| Material | Ceramic Fiber with Heating Wire-Internal, Powder Coated steel-External Ceramic Fiber-Insulation | ||||||
| Dimensions (W×D×H) | Internal (cm) | 13×25×9 | 15×30×10 | 20×30×20 | 25×35×16 | 30×30×30 | 40×40×40 |
| External (cm) | 41×48×53 | 44×53×55 | 50×55×66 | 55×59×62 | 60×59×76 | 100×75×95 | |
| Gross Weight | 47 kg | 54 kg | 79 kg | 93 kg | 116 kg | 225 kg | |
| Electrical Requirements | 1 Phase – AC 230 V, 50/60 Hz | ||||||
