SKU: HZ1-Parent
1-2500ml Digital Homogeniser
In Stock
Categories: HomogenizersSKU: HZ1-Parent
Product Enquiry

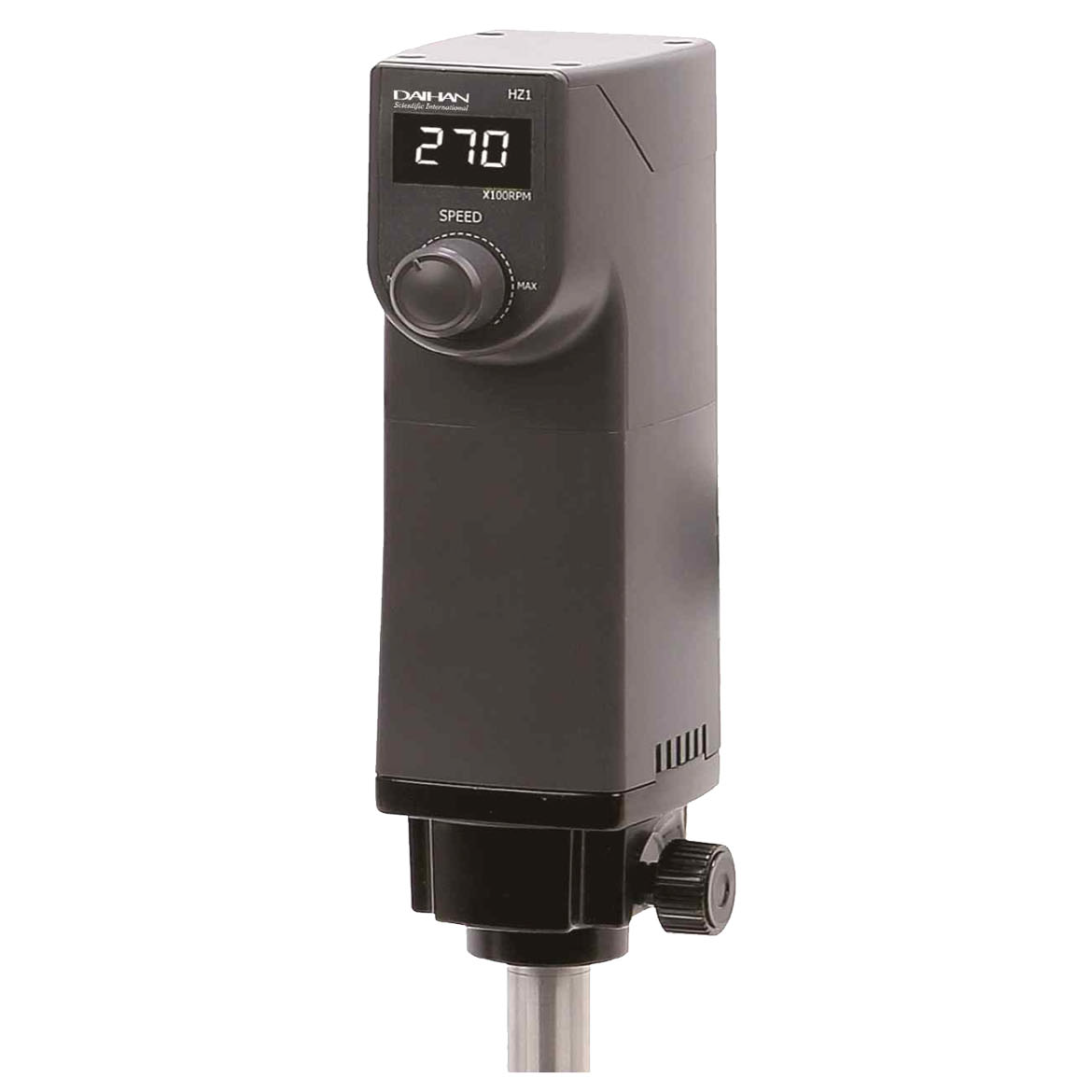

HZ1 Homogeniser Set, with Direct Controller
Digital Jog-Dial Controller, High Efficiency Dispersing Tools, High-Speed, High-Quality, Low-Noise
- Designed for Liquid and Tissue samples
- Useful for all dispersing and homogenising applications
- High Speed, High Quality, Low Noise
- Speed & Power Control Optimized for a Sample
- High Efficiency Dispersing Tool made of stainless steel and PTFE

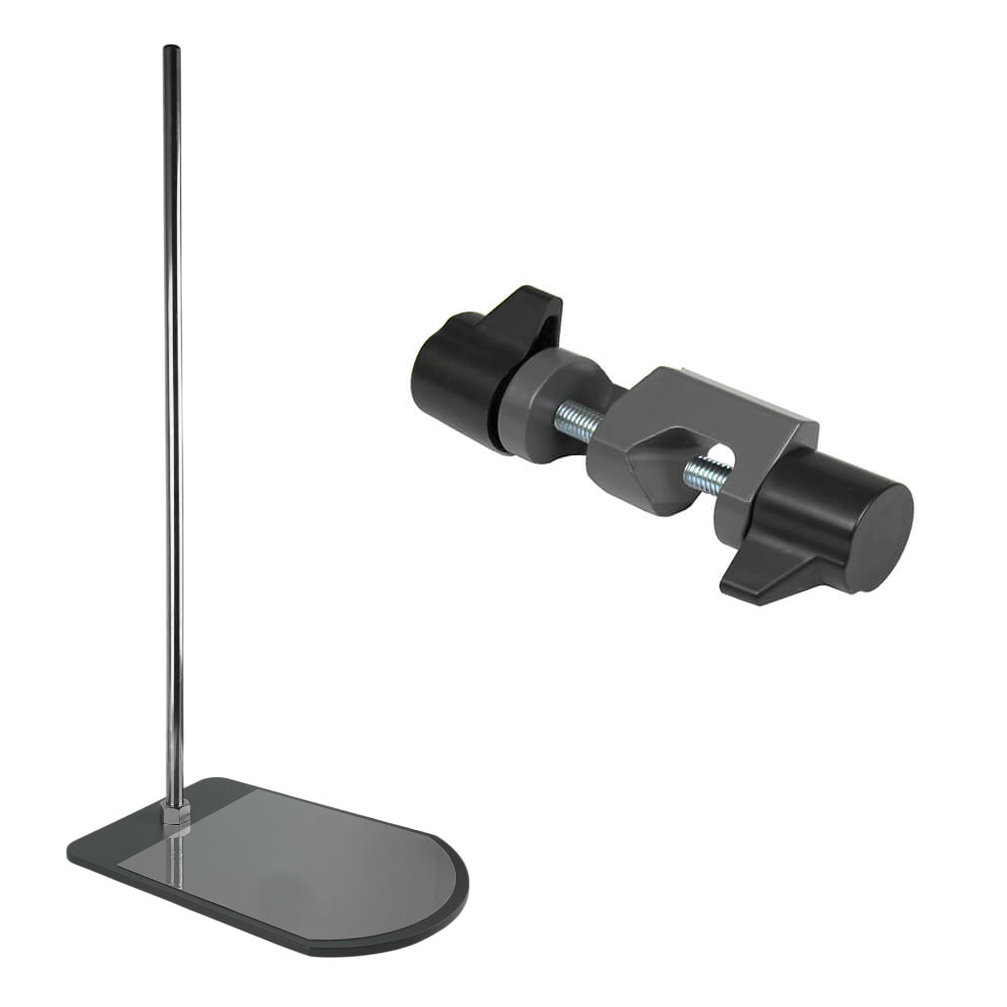

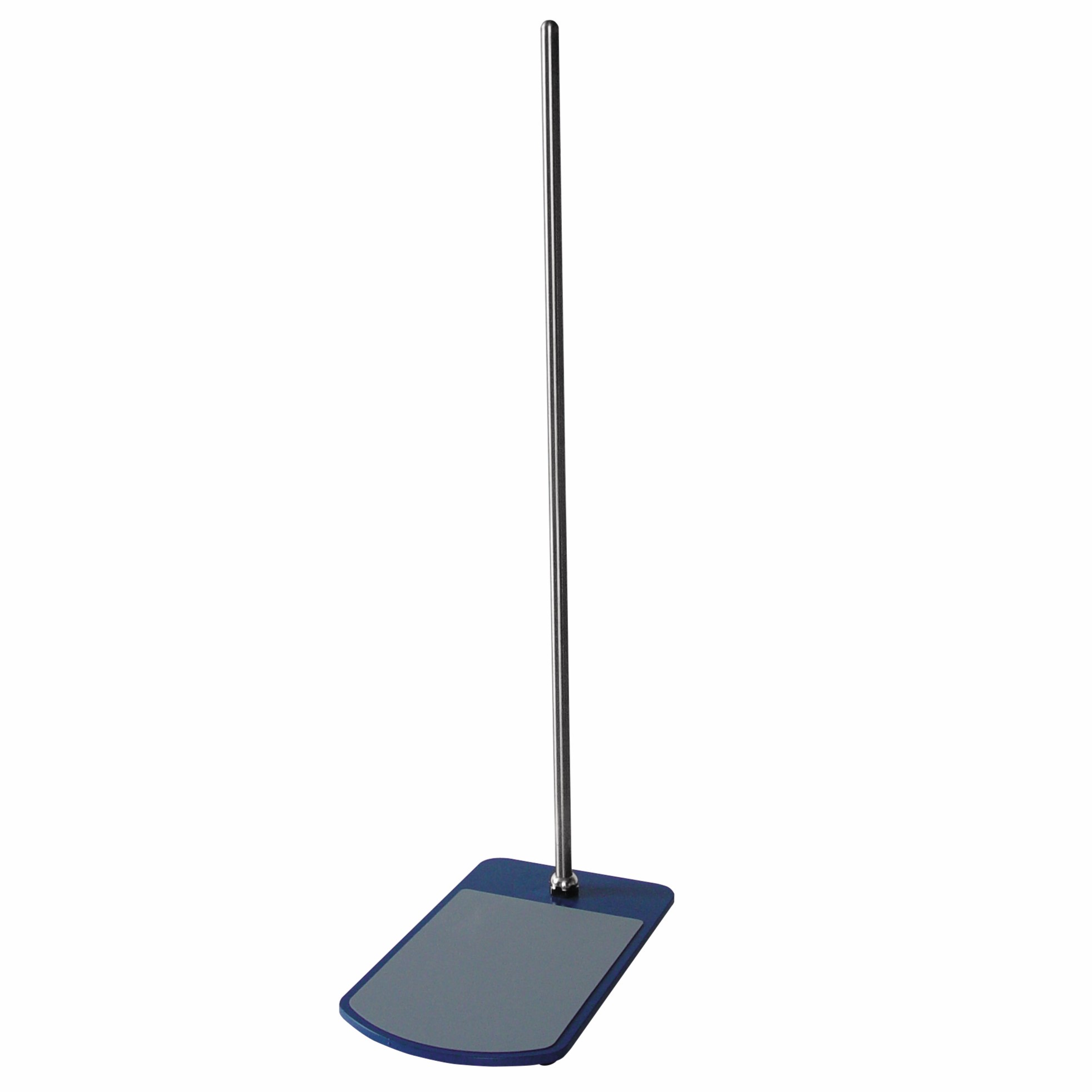

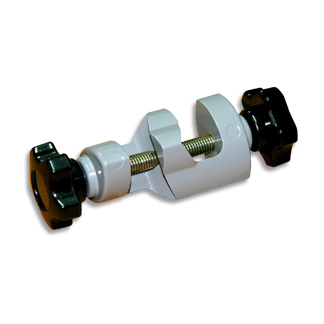

- Includes OSHC010 Clamp, OSSR010 Standard Plate Stand

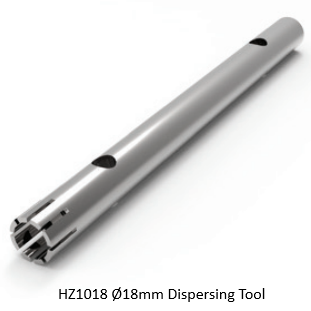

Set A includes: Ø18mm Dispersing Tool

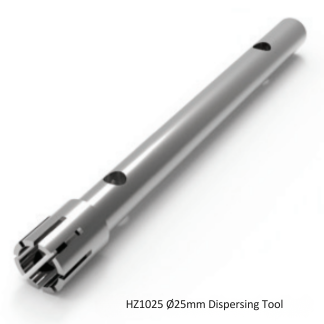

Set B includes: Ø25mm Dispersing Tool
SPECIFICATIONS
| HZ1 – Set A | HZ1 – Set B | |
| Speed Range | 2,000-2,7000rpm (without load) | |
| Maximum Volume | 2,500ml (H2O) | |
| Motor Rating (Input/Output) | 400W / 300W | |
| Speed Control | Jog-Dial Controller | |
| Display | High Fidelity LCD display – 3 Digit FND | |
| Safety Devices | Over-heat and Current Protection | |
| Permissible Temp/Humidity | 5°C-40°C, < 80% | |
| Dispersing Tool | HZ1018 Ø18mm stator 10~1000ml | HZ1025 Ø25mm Stator 50~2500ml |
| Body Material | ABS & Aluminium | |
| Dispensing Tool Material | Stainless Steel (#304) | |
| Extension Arm Size | Ø12.7 × L250mm | |
| Power Consumption | 400W | |
| Dimensions / Weight | 70×120×210mm, 1.73kg | |
| Packing Size / Gross Weight | 275×275×125mm, 2.2kg | |
| Power Supply | AC230V, 50/60Hz | |
