SKU: Rocker 300

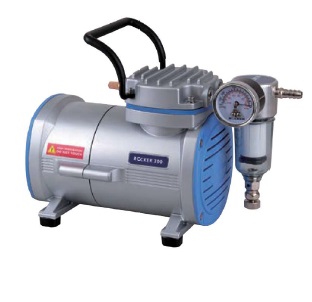

Oil Free Vacuum Pump 20 L/min

Categories: SKU: Rocker 300

Specification (220V, 50Hz)

  • Max. power:             60 W
  • Max. current:             0.3 A
  • Max. vacuum:          105 mbar
  • Max. flow rate:         20 L/min
  • Moisture Trap:          Yes
  • Vacuum Regulator:  Yes
  • Overflow protection: Yes
  • Motor rotation:        1450 RPM
  • Horsepower:          1/8 HP
  • Noise level:             50 dB
  • Hose barb:             5/16 inch (8 mm)
  • Net weight:             4.1 Kg
  • Dimension (L×W×H):26.8 × 13.5 × 20.4 cm
  • 2  Year Warranty

Features :

  • No air pollution, maintenance-free
    Rocker series pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
  • Prote™ overflow protection
    Rocker series pumps are equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.
  • Moisture trap with filter cartridge
    Rocker series pumps are equipped with filter cartridge in air inlet to filter particle and moisture to prolong the life of pump.
  • Vacuum regulator
    Rocker series pumps are equipped with vacuum regulator to adjust vacuum.
  • Thermal protection device
    Every motor of Rocker series pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.

International certification :

  • CE certification
  • CSA certification
  • IP 30 protection class
  • RoHS certification

Applications :

  • Filtration for microbiology test
  • Air sampling
  • Suspended solid test
  • Vacuum filtration

Vacuum Tubing not included *see related products for Vacuum Tubing*
